Automatic Block Making Machine Equipment

Modern construction projects demand reliability, speed, and consistent quality. An Automatic Block Making Machinery system is the core of any high-output concrete production line, transforming raw materials into precision-shaped blocks with minimal manual intervention. For facilities scaling up their capabilities, integrating advanced Automatic Block Making Machinery Equipment ensures seamless batching, molding, and curing cycles. Unlike conventional setups, a dedicated Block Making Machine designed for automation handles variable mix designs, from hollow blocks to solid pavers, while maintaining tight dimensional tolerances. This category of Block Making Machinery now incorporates intelligent vibration and hydraulic compression, delivering uniform density and surface finish across every cycle. The result is a dramatic reduction in waste and labor costs, with outputs often exceeding 10,800 blocks per eight-hour shift depending on the mold configuration.

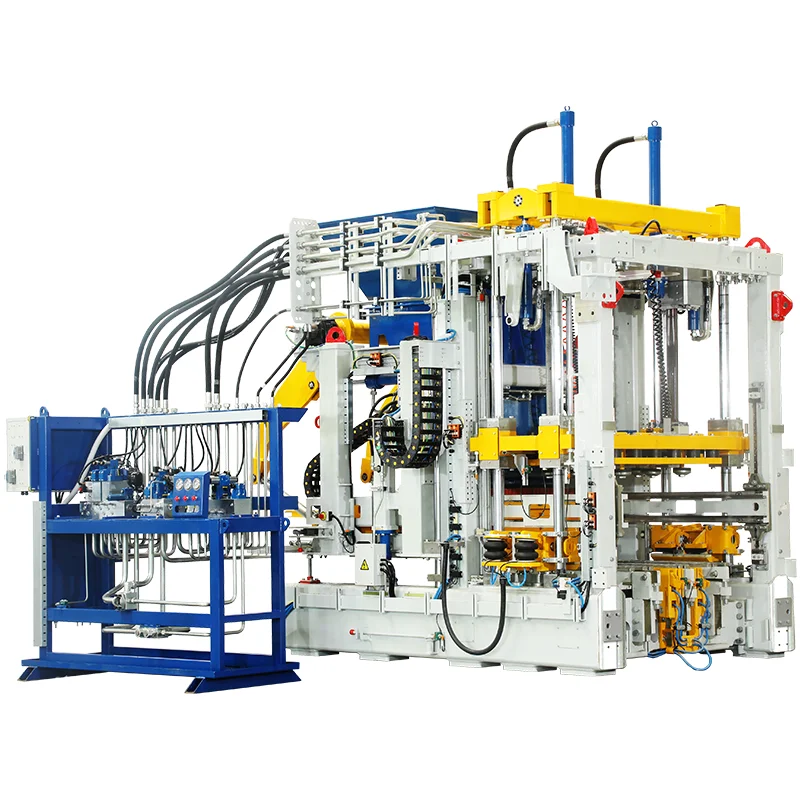

The Automatic Block Making Machine Equipment represents a fully integrated production solution engineered for continuous operation and unmatched output stability. Its structural frame is built from thickened, stress-relieved steel plates, paired with a synchronized dual-vibration motor system that applies precisely controlled high-frequency oscillations. This accelerates compaction, achieving optimal green strength immediately after demolding. A Siemens PLC controls the entire sequence—material feeding, mold lowering, vibration, pressure application, and pallet ejection—with touchscreen parameter settings that allow operators to switch between block types in under two minutes. The hydraulic system utilizes a load-sensing variable displacement pump, lowering energy consumption by up to 25% compared to fixed-displacement designs. A key advantage is the rapid mold-change cart, which slides complete mold sets into position without requiring bolted connections, cutting downtime significantly during product changeover. Detailed specifications are provided in the tables below, highlighting the machine’s capacity, power ratings, and cycle speeds that make it suitable for large-scale hollow block, solid block, and paver production.

• Pallet size: 900×680mm; precise alignment within ±0.3mm ensures stable demolding.
• Molding cycle: 18–25 seconds, adjustable based on product height and mix design.
• Vibration force: variable from 45kN to 75kN, dual motors with synchronized frequency control.
• Hydraulic system: maximum pressure 21 MPa, flow rate 120 L/min, proportional valve control for press heads.
• Control system: Siemens S7-1200 PLC with 10-inch color HMI, featuring fault diagnostics and production data storage.
• Mixer integration: skip hoist or belt conveyor feeding directly synchronized with the machine’s material call signal.
• Total installed power: 37.5 kW (vibration 2×11kW, hydraulic motor 15kW, accessories).
• Approximate weight: 8.5 tons, providing the mass required for vibration absorption.
