Automatic Cement Block Making Machinery
  • Automatic Cement Block Making MachineryAutomatic Cement Block Making Machinery

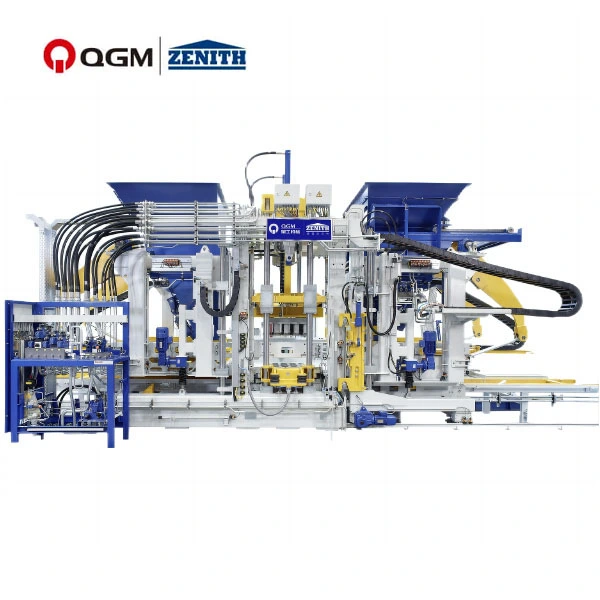

Automatic Cement Block Making Machinery

Model:ZN1500-2C

Automatic Cement Block Making Machinery has the European Standard for it is designed by Germany Zenith which is the manufacturer has more than 70-years-experience on block making machine.To reduce the cost, QGM started its bulk production in China.
ZN1500-2C has the advantages of high-tech design, larger capacity, better quality and cost performance.
Pallet size:1,400×1,100/1,200mm, Different blocks can be produced by changing the mould only.

Automatic Cement Block Making Machinery is a brick-making machine specially used for producing new wall material blocks. Through raw material processing, Automatic Cement Block Making Machinery can reuse industrial solid waste such as fly ash, slag, slag, construction waste, etc. to make bricks, and ensure the quality of the products through crushing, screening, mixing and other processes. Automatic Cement Block Making Machinery adopts automatic pick-up and delivery board system, feeding and dividing material, forced material distribution system, pressure head synchronization and mold frame synchronization system, which can realize automatic cycle production, improve production efficiency, ensure large brick output and stable product quality. Automatic Cement Block Making Machinery also has the characteristics of large molding area and production of various cement products. It has a high degree of automation and does not require manual feeding, which improves production efficiency and reduces labor intensity and labor costs.


Product Video


Main Technology Features

Servo Vibration System
The machine is equipped with the newly developed servo vibration system, which has a dense and high-excited vibration force, thus ensuring production in an efficient way, especially for large products and high-quality products, which need to be produced by pre-vibration and transitional vibration, can achieve a really nice effect.


Compulsory Feeding
The feeding system is applied with the Germany patented design, which is suitable for the use of construction waste and other special aggregates. What's more, the discharging gate is controlled by SEW motor. The feeding frame, bottom plate & mixing blades are made of high-duty sweden HARDOx steel, which strengthen the sealing performance and prevent the material leakage to guarantee the long service life, feeding uniform for the improved product quality.

SIEMENS Frequency Conversional Control
SIEMENS Frequency conversional technology was re-innovated and improved by Germany R&D center. The main machine vibration adopts low frequency standby, high frequency operation, which improve the running speed and product quality. At the same time, it reduces the impact on the mechanical parts and the motor prolongs the life of the machine and the motor, and saves about 20%-30% of electricity compared with the traditional motor operation control.


Fully Automatic Control
Perfectly combine the automation technology and system from Germany. The automatic control is of easy operation, low failure ratio and high reliability. At the same time, it has the functions of product formula management and operation data collection.


High-efficient hydraulic system
The hydraulic pump & valve are from international brand, which adopt high dynamic proportional valve and constant output pump to adjust the speed & pressure, with the features of high-stability, high efficiency and energy-saving.

lntelligent Cloud System
QGM intelligent equipment cloud system realizes online monitoring, remote upgrade, remote fault prediction and fault self-diagnosis, equipment health status evaluation; generates equipment operation and application status reports and other functions; with the advantages of remote control & operation, quick troubleshooting &maintenance for the clients. Everything is interconnected, and the production and operation of equipment can be seen through the network in every corner of the world.


Technical Data

Max. forming area 1,300*1,050mm
Height of finished product 50-500mm
Moulding cycle 20-25s(following the product shape)
Exciting force 160KN
Pallet size 1,400*1,100/1200*(14-50)mm
Forming block number 390*190*190mm(15 block/ mould)
Vibration table 4*7.5KW
Top vibration 2*1.1KW
Electrical control system SIEMENS
Total installed capacity 111.3KW
Total weight 18.3T(without face material device) 28.2T(with face material device)


Production Capacity

Block Type Output ZN1500-2C Block Making Machine
240*115*53mm
Number of formed blocks(block/ mould) 84
Square meter/ hour (m2/ hour) 400-420
Square meter/ day (m2/ 8 hours) 3180-3360
Number of block (blocks/ m2) 36
390*190*190mm
Number of formed blocks(block/ mould) 15
Cubic meter/ hour (m3/ hour) 32-34
Cubic meter/ day (m3/ 8 hours) 254-271
Number of block (blocks/ m3) 71
400*400*80mm
Number of formed blocks (block/ mould) 3
Cubic meter/ hour (m3/ hour) 69.1-86.4
Cubic meter/ day (m3/ 8 hours) 553-691.2
Number of block (blocks/ m3) 432-540
245*185*75mm
Number of formed blocks (block/ mould) 15
Cubic meter/ hour (m3/ hour) 97.5-121.5
Cubic meter/ day (m3/ 8 hours) 777.6-972
Number of block (blocks/m3) 2160-2700
250*250*60mm
Number of formed blocks (block/ mould) 8
Suqare meter/ hour (m3/ hour) 72-90
Square meter/ day (m3/ 8 hours) 576-720
Number of brick (blocks/ m3) 1152-1440
225*112.5*60
Number of formed blocks (block/ mould) 40
Square meter/ hour (m2/ hour) 150-160
Square meter/ day (m2/ 8 hours) 1200-1280
Number of block (blocks/ m2) 39.5
200*100*60
Number of formed blocks (block/ mould) 54
Square meter/ hour (m2/ hour) 138-150
Square meter/ day (m2/ 8 hours) 1100-1200
Number of block (blocks/ m2) 50
200*200*60
Number of formed blocks (block/ mould) 30
Square meter/ hour (m2/ hour) 180-195
Square meter/ day (m2/ 8 hours) 1440-1560
Number of block (blocks/ m2) 25
