Brick making machine maintenance room

Establishing a dedicated area for equipment upkeep significantly extends the service life of your machinery. A brick machine maintenance room serves as a controlled environment where routine inspections, part replacements, and cleaning procedures can be performed without disrupting the main production flow. For operations centered on cement-based products, a concrete brick machine maintenance room is engineered with additional resistance to abrasive dust and moisture, keeping critical components protected. When working with large-format units, a block machine maintenance room provides taller clearances and reinforced flooring to accommodate heavier molds and pallets. To invest in a turnkey solution, browse our brick machine maintenance room for sale and outfit your facility with a structure that prioritizes safety and organization.


The <产品名字> combines advanced ventilation, acoustic insulation, and modular construction to seamlessly integrate into any existing brick or block production layout. Pre-fabricated wall panels and a quick-lock assembly system allow for rapid on-site installation without specialized tools. Inside, the layout includes designated zones for tool storage, a wash-down area, and an overhead hoist beam rated for heavy mold handling. An industrial-grade exhaust fan continuously extracts silica dust and fumes, maintaining air quality that meets occupational health standards. Sound-dampening panels reduce noise leakage to the surrounding factory floor, creating a quieter work atmosphere. The floor is coated with a slip-resistant epoxy finish that withstands oil, hydraulic fluid, and frequent cleaning. Heating elements and insulated walls ensure the interior remains above freezing temperatures, which is critical for concrete-related equipment that can be damaged by frost. Integrated LED lighting, multiple power outlets, and compressed air lines come pre-installed, so the room is fully operational right after assembly. With a rugged steel frame and corrosion-resistant cladding, this maintenance room delivers dependable performance for decades with minimal upkeep.

Technical Specifications

Parameter MR-20 MR-30 MR-40
External Dimensions (L×W×H) 4.2×3.0×3.2 m 5.5×3.6×3.6 m 7.0×4.0×4.0 m
Internal Clear Height 2.85 m 3.25 m 3.65 m
Door Opening 2.0×2.4 m 2.5×2.8 m 3.0×3.0 m
Wall Panel Material 50 mm PU sandwich 75 mm rock wool sandwich 100 mm rock wool sandwich
Roof Live Load 100 kg/m² 120 kg/m² 150 kg/m²
Ventilation Rate 1,800 m³/h 2,400 m³/h 3,200 m³/h
Sound Reduction 28 dB 33 dB 38 dB
Suitable Brick Machine Types Small concrete brick lines Medium block and paver machines Large fully automatic block plants
Electrical Connection 220V/380V, 3-phase 220V/380V, 3-phase 220V/380V, 3-phase
Assembly Time (2 persons) 6–8 hours 10–12 hours 14–16 hours

Related Products

Hot Products

  • Fully Automatic Brick Block Forming Machine

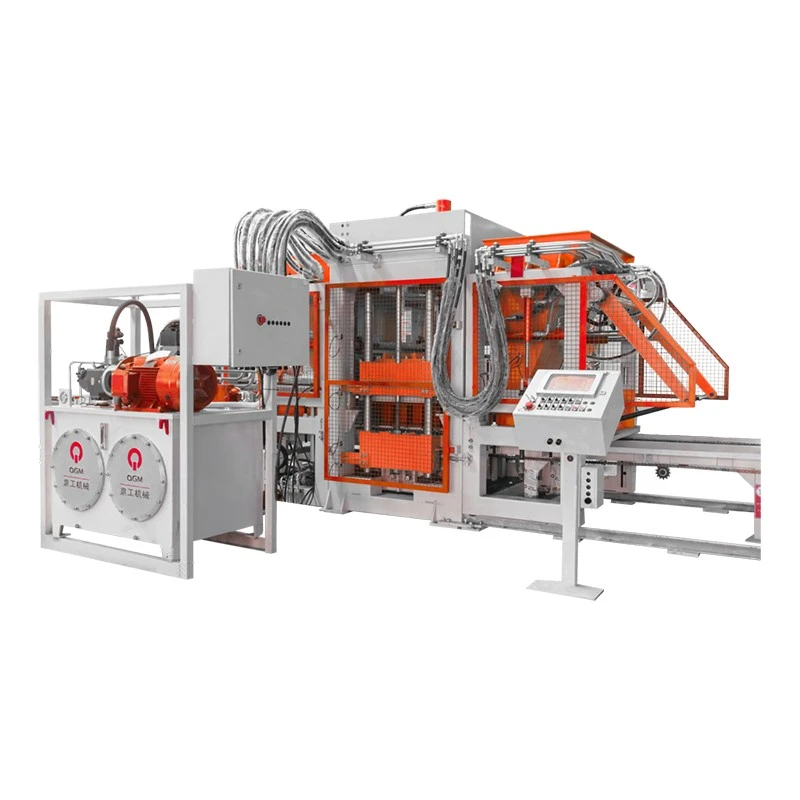

    Fully Automatic Brick Block Forming Machine
