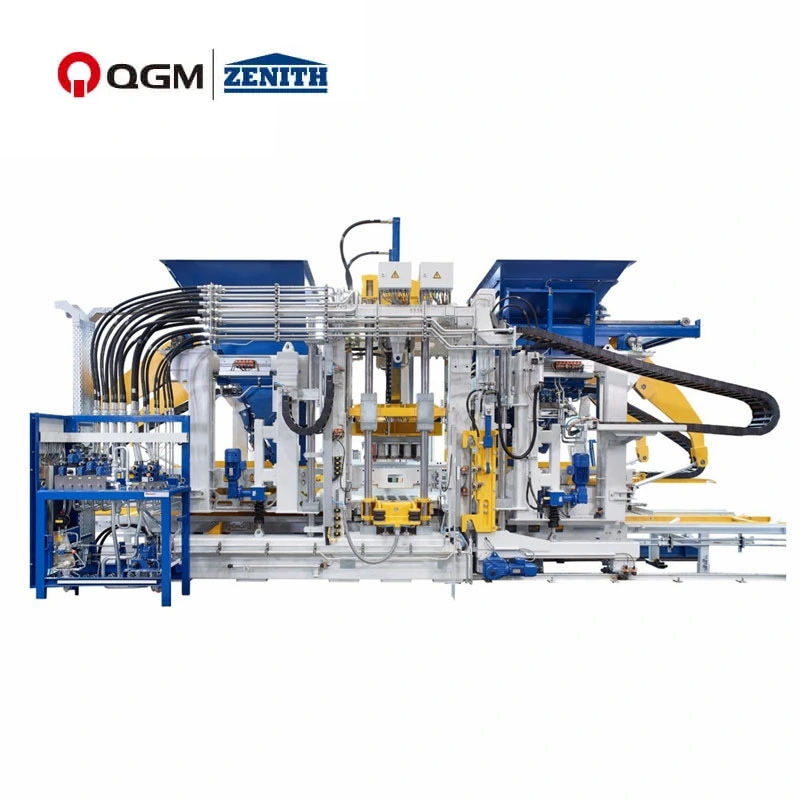

Single Pallet Block Making Machine

Single Pallet Block Making Machine is a brick making machine specially used for producing blocks. Single Pallet Block Making Machine adopts fly ash, river sand, gravel, stone powder, waste ceramsite slag, smelting slag and other materials, adds a small amount of cement, and produces new wall material blocks. This type of forming machine usually adopts hydraulic forming mode, and there are also vibration forming. Single pallet block making machine has the characteristics of silent, static pressure mode, no noise, high output, high density, no need for pallet maintenance, short maintenance cycle, less manpower, no special requirements for the working ground, and a wide variety of products. Single Pallet Block Making Machine is suitable for producing high-strength blocks, such as standard bricks, which are usually stronger than traditional clay bricks by pressing up and down and vibrating strongly during production. In addition, by replacing different molds, the machine can also produce block products of various shapes and specifications, such as exterior wall blocks, interior wall blocks, flower wall blocks, floor blocks, embankment blocks, interlocking pavement blocks and curbstones, etc., which are widely used in construction fields such as buildings, roads, squares, water conservancy, and gardens.‌

Product Video

Main Technology Features

(1) The high quality servo compaction system named Ultra-Dynamic stands for a very high compaction and extreme dynamics. It therefore guarantees a quick and efficient production of top-quality products. Especially for products with a large volume and also for premium products, which are produced with pre- and intermediate vibration, this vibration system provides many advantages. The system works without an oil bath supporting an eco-friendly and low-maintenance production.

(2) The use of screw fittings for the vibration table, the motor cross beam and the frame side parts is a special feature of this machine. It is unique on the market as it can adapt to customer’s production conditions. The screwed construction also provides for resistant connections and an excellent stability.

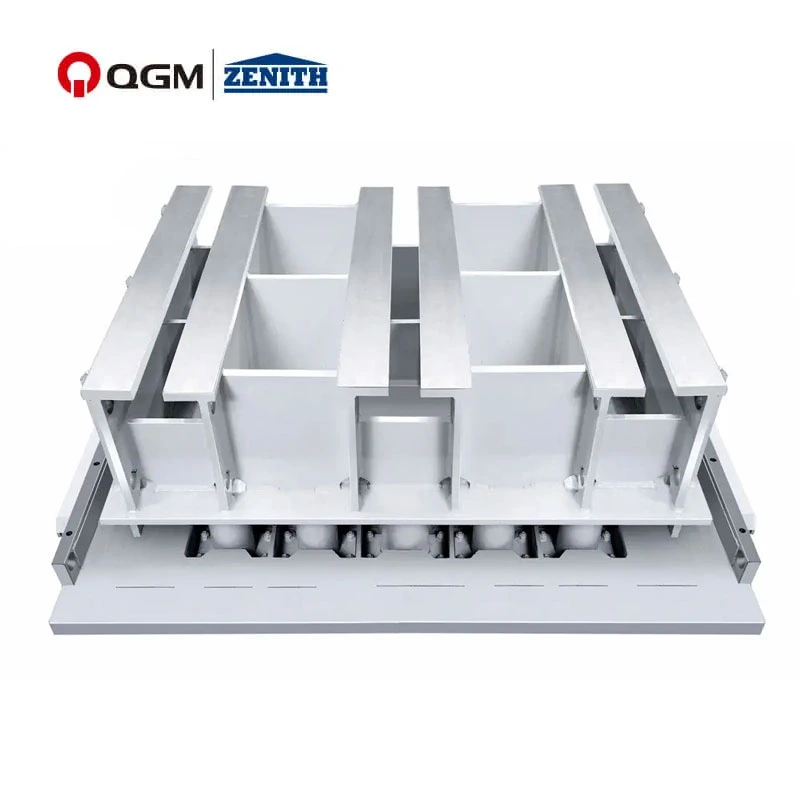

(3) The pneumatic mould clamping device provides for an easy mould change. The mould is positioned without further fastenings - e.g. bolts - on the mould holder. It is fixed by the pneumatically operated clamping levers. Optimal vibration results and a longer mould life time are achieved thanks to the individual adjustments of pre- and main vibration. The mould clamping device can now be adapted to mould fastening systems of other machine and mould manufacturers.

(4) A new traverse has been developed for the machine ZENITH 1500-2 which allows to remove the columns individually from the side. This new feature saves a lot of time during maintenance work and the exchange can be carried out much more safely and with less effort. The entire geometry of this assembly including columns is identical to previous machine ZENITH 1500. It is possible to retrofit this new traverse on existing machines.

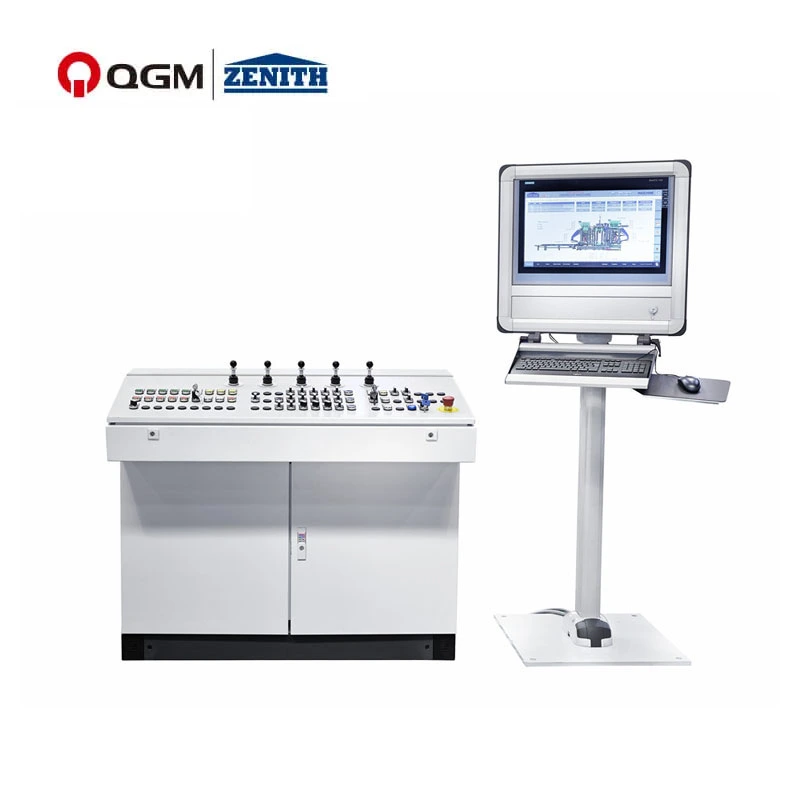

(5) The self-explanatory and intuitionally visualization concept guarantees for an easy learning of the machine operation. A new diagnostic design supports the operators in choosing the best adjustments. Time-consuming trouble shooting is no longer necessary and production downtimes are reduced to a minimum. By using the latest database technology, all information can be recorded, evaluated and stored. This data is available anywhere thanks to the complete plant networking.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Hollow Block	400*200*200		15	15s	28,800 pcs
Rectangular Paver	200*100*60		60	14s	2,419m2
Rectangular Paver (without facemix)	200*100*60		60	11s	3,110m2
Curstone	150*1000*300		6	20s	8,640 pcs
