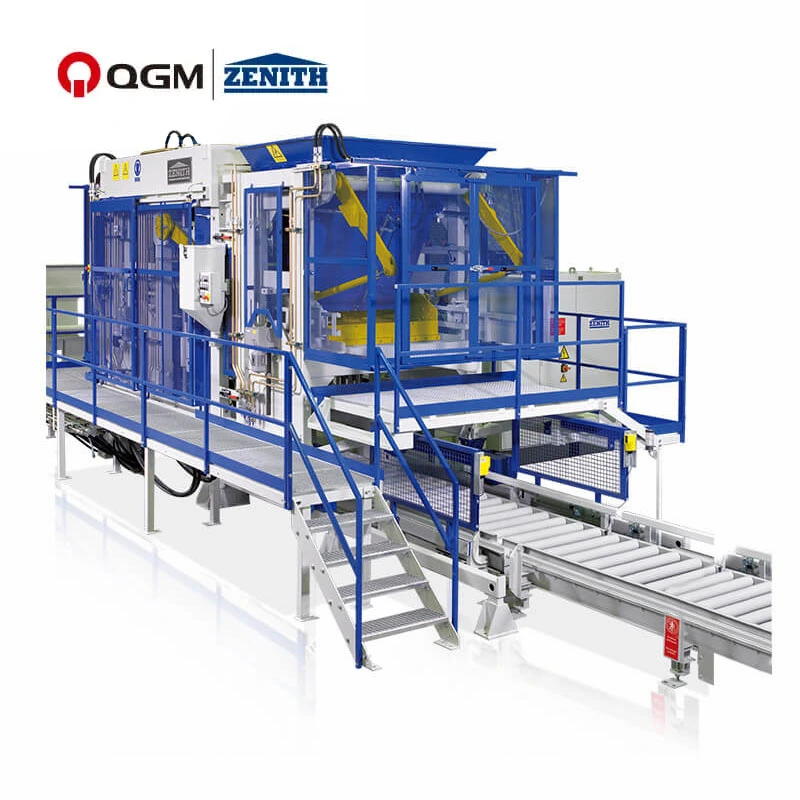

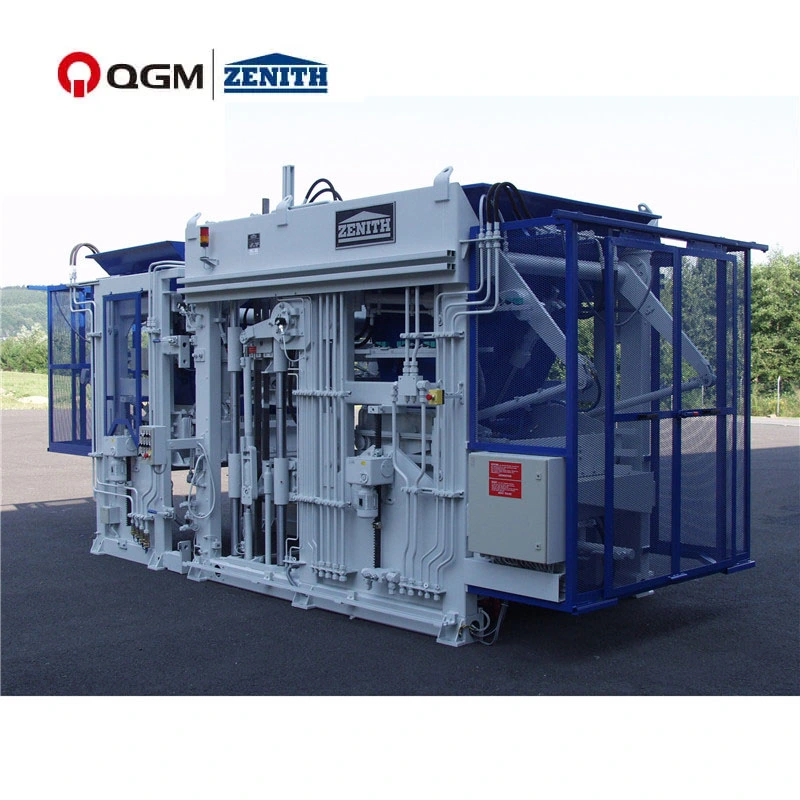

Automatic Paving Brick Making Machine

Automatic Paving Brick Making Machine is a brick making machine, mainly used to produce colored bricks, decorative bricks and pavement bricks of different specifications. Automatic Paving Brick Making Machine is a highly automated unburned brick machine. It uses fly ash, coal slag, coal gangue, tailings slag, chemical slag or natural sand, sea mud and other raw materials to produce new building materials such as pavement bricks, hollow bricks, solid bricks, blind hole bricks, permeable bricks, road paving bricks and other new building materials of various varieties and specifications. It consists of an automatic batching system, a mixing system and a molding system. Through computer automatic control technology, a variety of raw materials are fed into the mixer according to a preset ratio, and then the materials are squeezed into shape through hydraulic vibration. The molding pressure is high and the brick blank has high strength. After molding, it can be directly stacked without sintering. Automatic Paving Brick Making Machine has the characteristics of compact structure, large pressing force, strong rigidity, fully sealed and dustproof, circulating lubrication, simple operation, high output and durability. The machine adopts advanced technology, has large transmission force, stable operation, accurate placement and low maintenance rate. Automatic Paving Brick Making Machine mainly uses various industrial waste and waste as raw materials. It is a new type of environmentally friendly and energy-saving building materials machinery equipment.

Product Video

Main Technology Features

(1) Intelligent operating: This equipment adopts PLC intelligent interactive system, which is controlled by a 15 inch touch screen and PLC, to operate full automatically, semi automatically or manually. The friendly visualized operating interface is equipped with data input and output device.

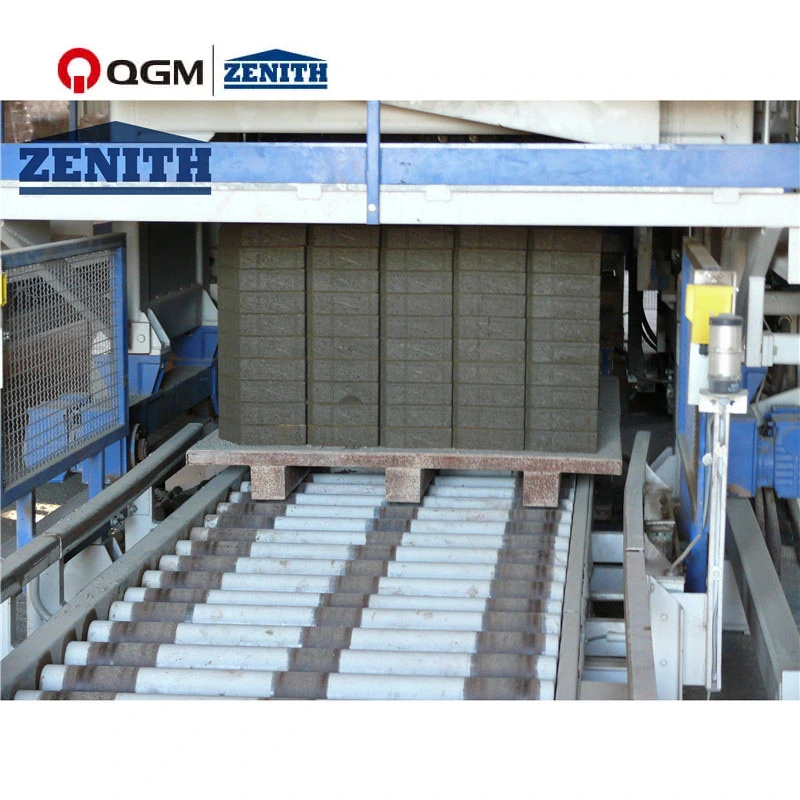

(2) Fence rolling conveyor belt: This block making machine uses rolling conveyor belt, featuring with accurate movement, smooth drive, stable performance, low noise, low failure rate, long service life, etc. The added fence and continuously improved safety concept provide the greatest possible safety protection for operators.

(3) Fast mould changing:Through this system, the machine sets a series of mould coefficient criterion. This system has functions of rapid mechanical locking, rapid tamper head changing device and electronic regulated height of feeding device, ensuring that various molds can be replaced at fastest speed.

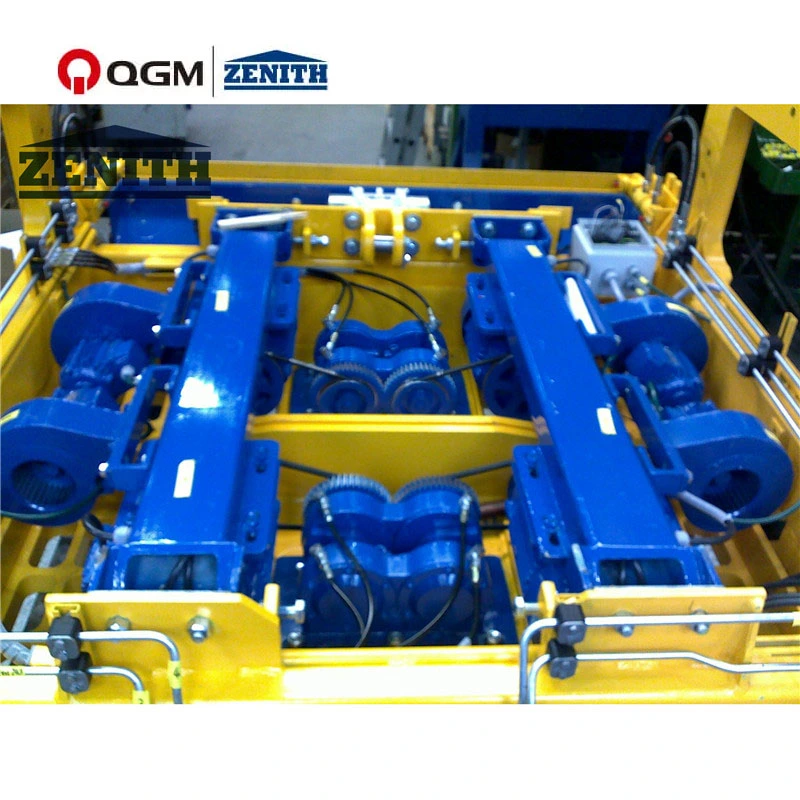

(4) Adjustable vibration table:The height of vibration table can be adjusted to meet the requirement of producing diversified products. The standard equipment can manufacture products with a height of 50-500mm. We can also produce products with special height using special mould following customers' demands.

(5) Accurate feeding: The feeder is composed of silo, guide board table, feeding car and lever shaft. The height of the anti-twist guide board table can be adjusted and the slide rail can position and move precisely. The lever shaft and ambilateral feeding car of rod drive are driven by hydraulic pressure, and the connecting rod is adjustable, ensuring the feeding car of horizontal moving.

Technical Data

1) Block specifications and product height

2) Machine parameters

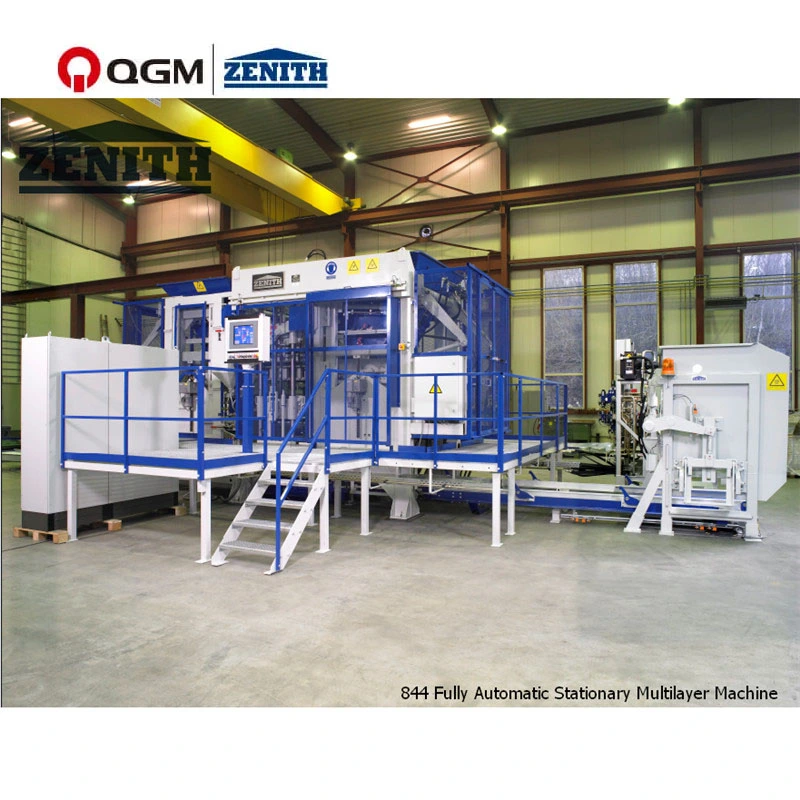

Zenith 844 machine Layout

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Rectangular Paver	200*100*60		54	28s	1,092m2
Rectangular Paver (without facemix)	200*100*60		54	25s	1,248m2
UNI Pavers	225*112.5*60-80		40	28s	1,040m2
Curstone	150*1000*300		4	46s	2,496 pcs
