Mobile Laying Brick Machine

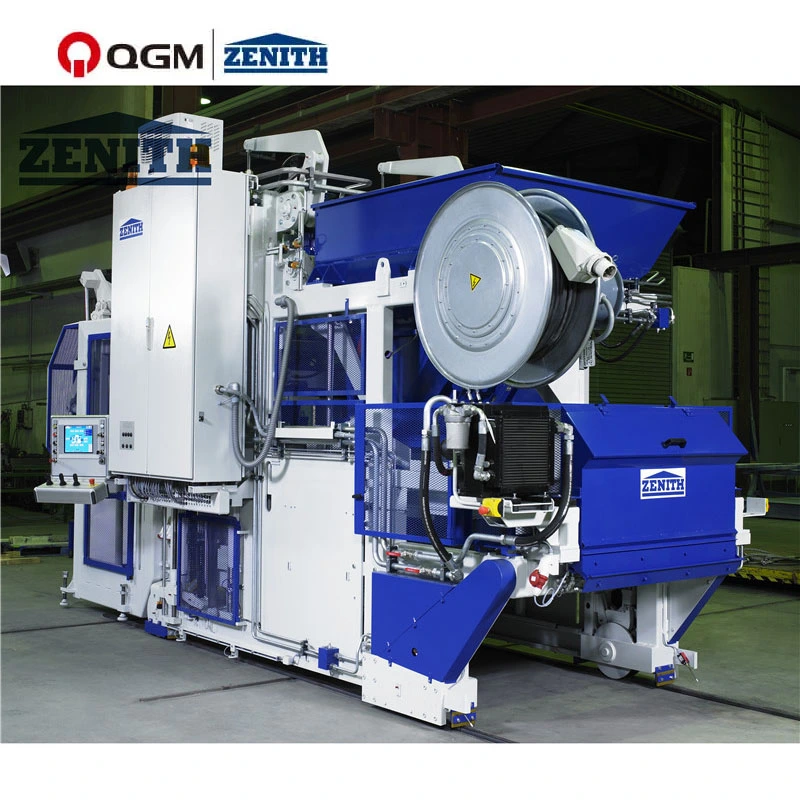

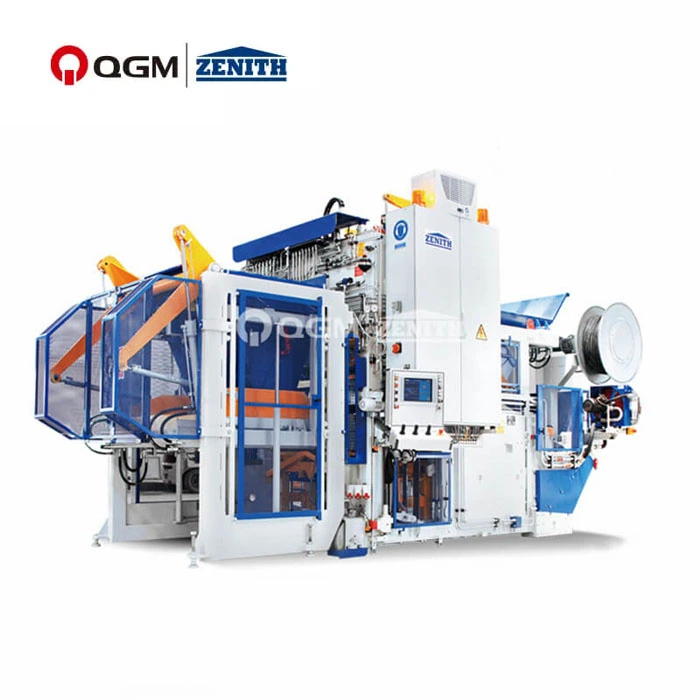

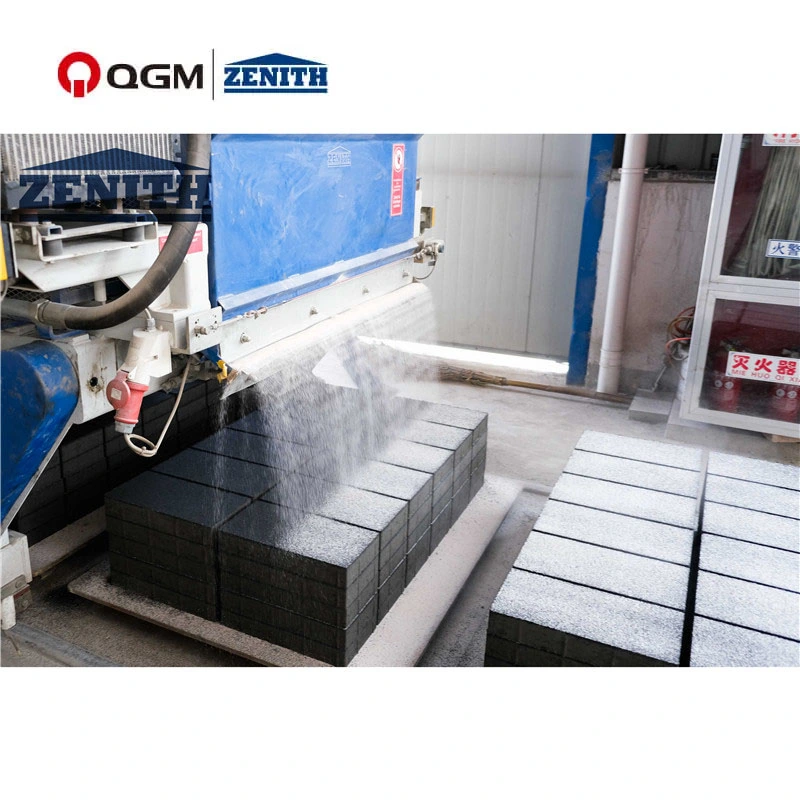

Model:Zenith 940

Mobile Laying Brick Machine is completely made in Germany. Excellent features like multi layer production, product height from 50 mm and even up to 1,000 mm used for landscaping, making the Zenith 940 be a true all-around and highly efficient automatic block machine. On the whole, German Zenith 940 is fit for special products which can’t be produced by single pallet equipment.

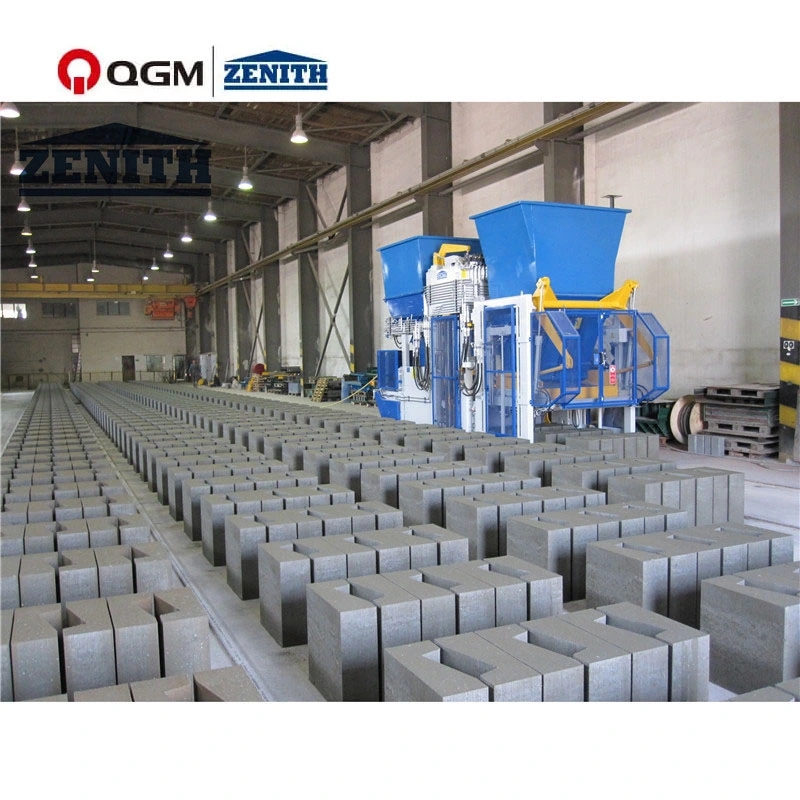

Mobile Laying Brick Machine is a brick-making machine. It is easy to operate and suitable for small brick factories. It moves with the change of the work site. This equipment does not require a pallet. The pressed bricks are placed on the site as the brick machine moves, saving a lot of pallet costs, but the site area needs to be large enough. Mobile Laying Brick Machine adopts an advanced PLC intelligent control system, which can realize human-machine dialogue, fully automatic operation, random signal analysis, automatic fault diagnosis and various parameter settings. This machine has the advantages of simple and compact structure, easy operation, easy maintenance, low power consumption and high output.


Product Video


Main Technology Features

(1) The self-explanatory, menu-driven Touch Panel makes the machine operation very easy. The production parameters for different mould types and production programmes are entered and saved by using the well-arranged menu masks. A quick Siemens SPS is used for internal signal processing.

(2) High-eifficiency Hydraulic System.Hydraulic power uses two-circuilt high pressure;Hydraulic system with two Milti-Star- Piston Pumps. It uses proportional hydraulic technology to adjust the speed and working according to the different products produced. hydraulic movements can be driven simultaneously and independently with different speeds and pressures and all data can be setting in the touch screen.All the information like time, calculation, option, hydraulic speed and pressure can be set up through touch screen.

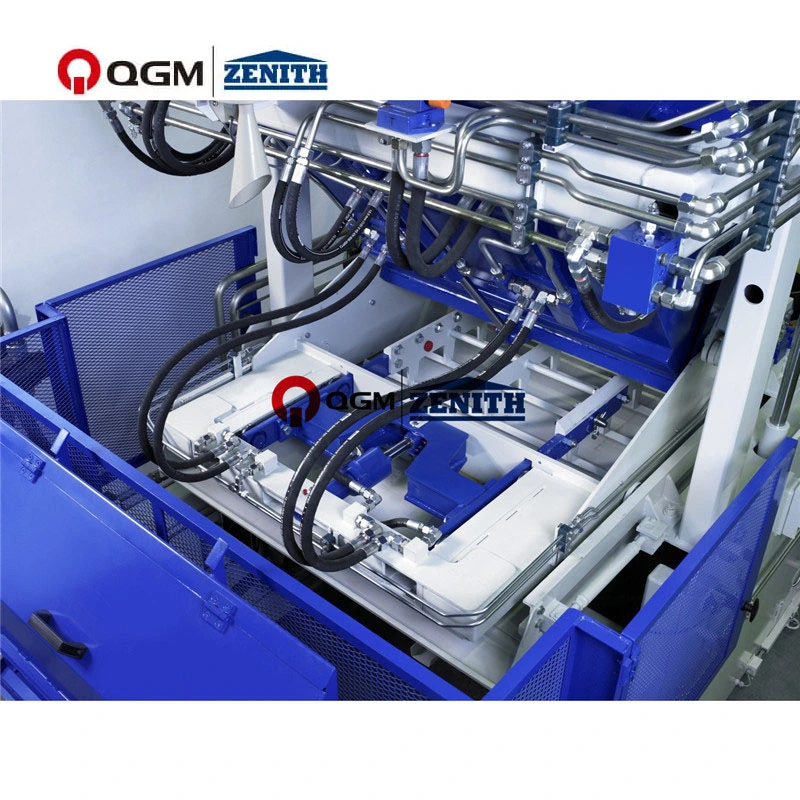

(3) High-eifficiency Vibration system.The vibration table is designed in order to have four different production levels; The upper part of the vibration table is two-parted in order to achieve an even power transmission and an optimum compaction; Replaceable wear plate for protection of upper parts of vibration table; The vibration table for acceptance of two vibrators to achieve a maximum centrifugal force of 80 kN; to produce 50cm high blocks, the mold frame is equipped with vibrators.(Can be equipped with 2, 4, 6. 8 vibrators according to the block height), Vibration motors uses Servo motors.

(4) Aggregate Feeding system.Feeder with hydraulic driven; can adjust feeder box runs on changeable ant torque high precision rail according to different molds, feeder guide wheel diameter Ø 80 mm; Hydraulic driven swivel scraper (three-parted) for proper cleaning of the mould surface;The hydraulically driven distribution grate is leading to a even distribution of the concrete in the mould; Height adjustable cleaning brush, attached to the front wall of the feed drawer for cleaning of tamper head shoes...


Technical Data

Features
Base material hopper 1,200L
Base material feedbox 2,000L
Pigment hopper 800L
Pigment feedbox 2,000L
Max.feeding height of loader 2,800mm
Forming size
Max.forming length 1,240mm
Max.forming width(producing on the vibration table) 1,000mm
Max.forming width(producing on the ground) 1,240mm
Product height
Multi-layer production
Min.product height(producing on the pallet) 50mm
Max.product height 250mm
Max.stacking height(pallet+ height of one layer product) 640mm
Low level production on the pallet
Max.product height 600mm
Low level production on the floor
Max.product height 650mm
Production on the floor
Max.product height 1,000mm
Min.product height 250mm
Machine weight
Without mould and pigments device 11.7 T
Pigment device 1.7 T
Machine size
Total length(without pigment device) 4,400mm
Total length(with pigment device) 6,380mm
Max.total height 3,700mm
Min.total height(transport height) 3,240mm
Total width(including control panel) 2,540mm
Vibration system
Max.exciting force of the vibration table 80KN
Min.exciting force of the top vibration 40KN
Energy consumption
Based on the maximum number of vibrating table 42KW


Production Capacity

Block Type Dimension (mm) Pictures Qty/Cycle Cycle Time Production Capacity (Per 8hs)
Hollow Block 400*200*200 12 40s 8,640 pcs
Rectangular Paver 200*100*60 54 38s 817m2
Rectangular Paver (without facemix) 200*100*60 54 36s 864m2
UNI Pavers 225*112.5*60-80 40 38s 757m2
Curstone 150*1000*300 4 46s 2,504 pcs
