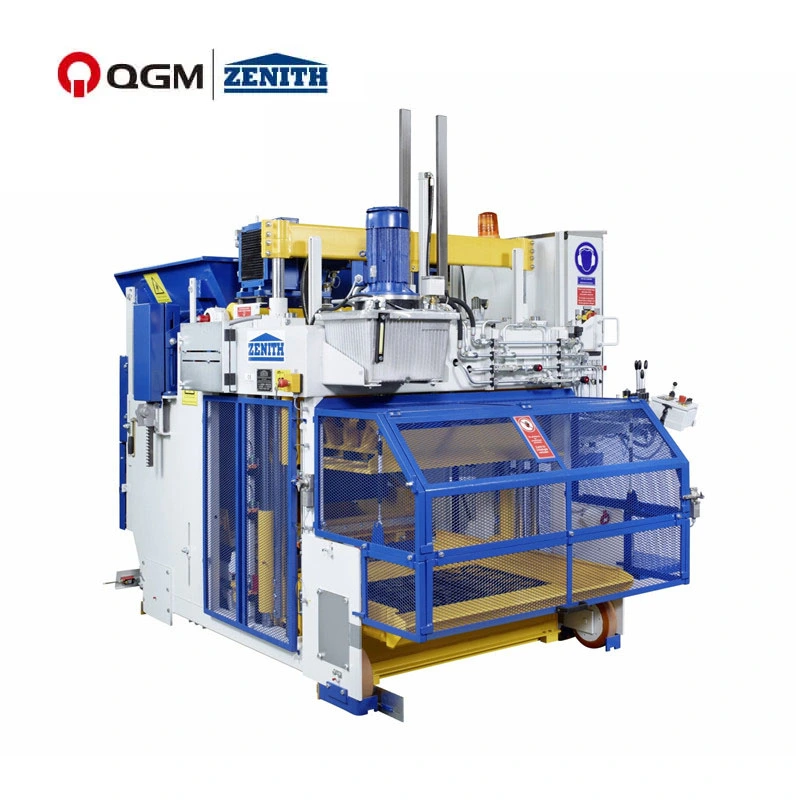

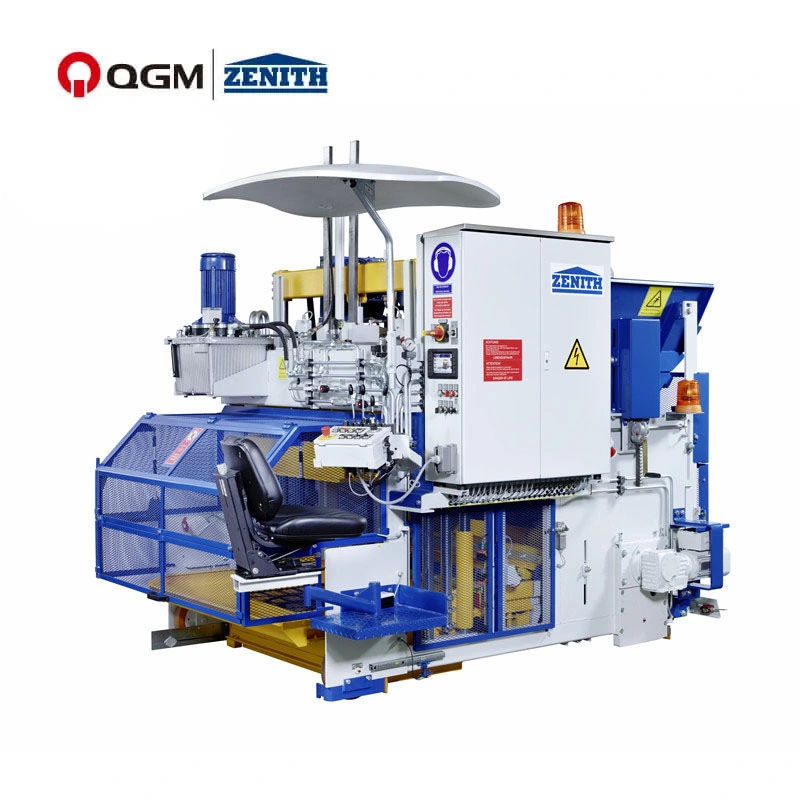

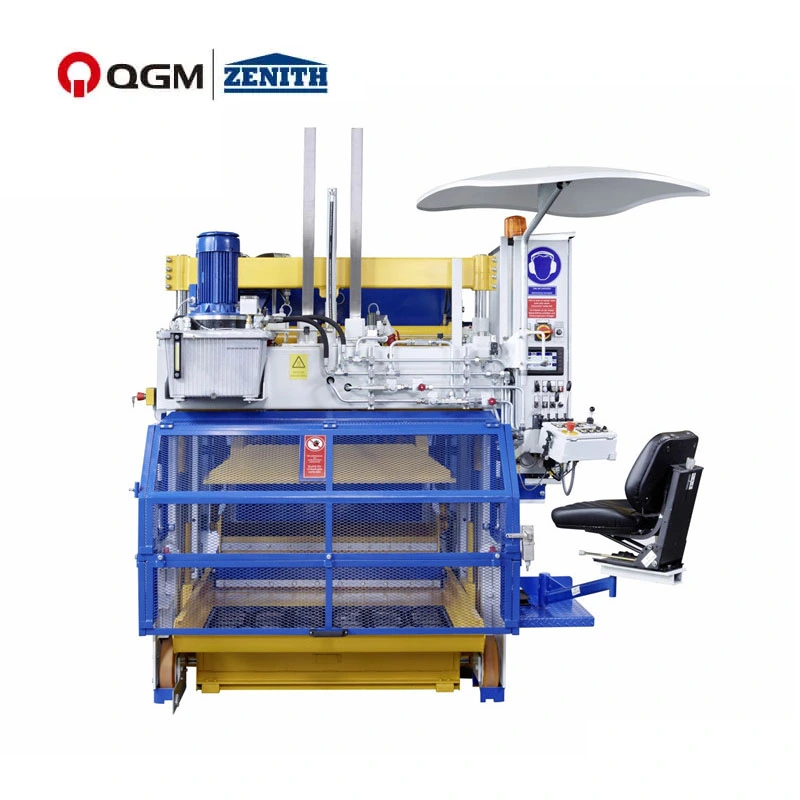

Hollow Brick Machine

Hollow Brick Machine is a brick machine equipment that specializes in the production of hollow bricks, multi-row perforated bricks and other building materials. Hollow Brick Machine uses fly ash, construction waste, slag, gangue, river sand, gravel and other materials, adds a small amount of cement, and produces hollow bricks through a specific process. This kind of brick is not only environmentally friendly and economical, but also effective. It is a new type of wall material. The main structure of Hollow Brick Machine includes a feeding mechanism, a frame, a silo, a pressure head, a board feeding mechanism, a lifting workbench, a control cabinet and a brick conveyor rack. Its technical parameters include molding cycle, vibration frequency, whole machine weight, etc., which ensure production efficiency and product quality. In addition, the hollow brick machine also supports intelligent control according to the density and strength of different materials to realize human-computer dialogue. It is an advanced production line integrating mechanical, electronic and hydraulic technologies.

Product Video

Main Technology Features

(1) Manual control mode:The equipment operation can be controlled by manual mode through operating directional control valve. The directional control valve consists of two modules: direction control rod and integrated instruction button, with precise control, convenient operation and strong maneuverability

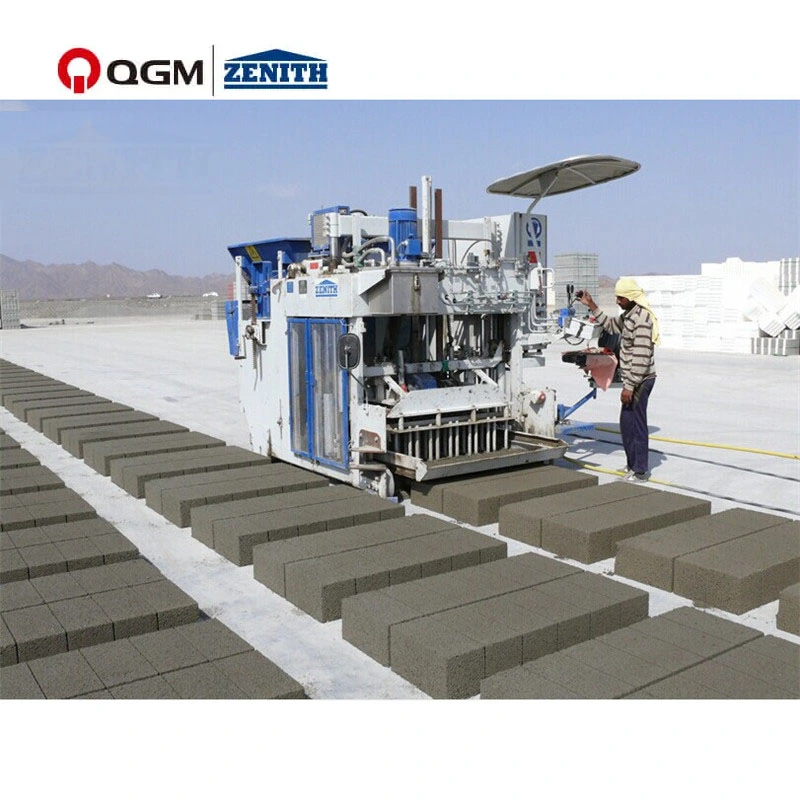

(2) Full-automation mode:The block machine is also equipped with automatic controller specially used for mobile block making machine. Operators can easily operate the equipment via dialogic and visual colored display screen to realize automatic production.

(3) Frequency conversion control: The motor of this equipment adopts frequency conversion control system, featuring with low energy consumption and stable operating. This control system has precise pressure control capability. The frequency conversion controlled electric drive unit can ensure rapid and smooth moving of the equipment, increasing efficiency and decreasing cost.

(4) Rapid mould replacing: The machine sets a series of mould coefficient criterion through this system. This mould replacing system has functions of mechanical fast locking, fast replacing of mould and tamper head, electronic controlled height of feeding device, etc., which ensures that various moulds can be replaced at the fastest speed.

(5) Rapid disassembly of protective net: The telescopic spring is installed on the protective net with quick installation and disassembly. It is convenient to clean and maintain the mould. The firm and easy locking mode can guarantee the maximum safety of the operator while providing convenience.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Hollow Block	400*200*200		12	35s	9,792 pcs
	400*150*200		16	35s	13,165 pcs
	520*160*200		12	35s	9,792 pcs
Soild Block	225*112.5*80		12	35s	9,792 pcs
