HP-1200T Rotary Table Static Press

Quangong Machinery Co.,Ltd is committed to becoming a global brick-making integrated solution operator, covering the cutting and bending of equipment plates and profiles, welding of mechanical structural parts, large CNC processing, precision assembly, production of electric control cabinets, and whole-line linkage debugging before delivery, as well as the final on-site installation and debugging. Each process is subject to strict quality inspection, while providing a full range of service systems such as product formula research and development, relevant skill talent training, and 24-hour after-sales service.

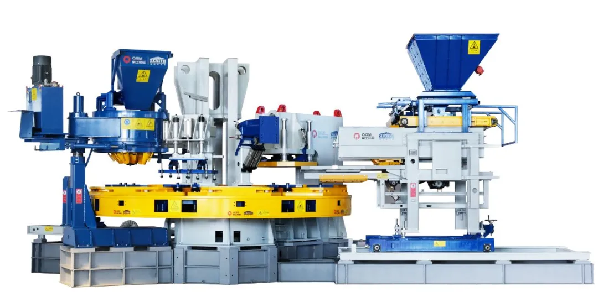

HP-1200T Rotary Table Static Press

The HP-1200T Rotary Table Static Press creatively separates the brick-making process into 7 stations, arranged in a circular layout, reducing the floor space, and has a large molding area and molding height range, ensuring that customers' diverse requirements for imitation stone concrete block products are met, filling the gap in domestic rotary seven-station imitation stone brick machines. Its formulated group standard "T/CCMA 0125-2022 Rotary Multi-station Static Press Concrete Block Forming Machine" has been selected as one of the 100 group standard application demonstration projects of the Ministry of Industry and Information Technology in 2023.

The main pressure of the equipment adopts a large-diameter transition oil tank filling device, which can respond quickly, move sensitively, and can output 1,200 tons of pressure. The hydraulic station adopts a variable pump, which adjusts the speed and pressure through a proportional valve, which is energy-saving and easy to operate. The turntable adopts an ultra-large slewing bearing, which is controlled by a servo motor with an encoder, and has stable operation and precise control. At the same time, it adopts an advanced visual control system, and the PLC adopts the Siemens S7-1500 series. The material unloading device has a built-in stirring device, and a quantitative turntable is used for unloading, and the material quantity is accurate and stable.
