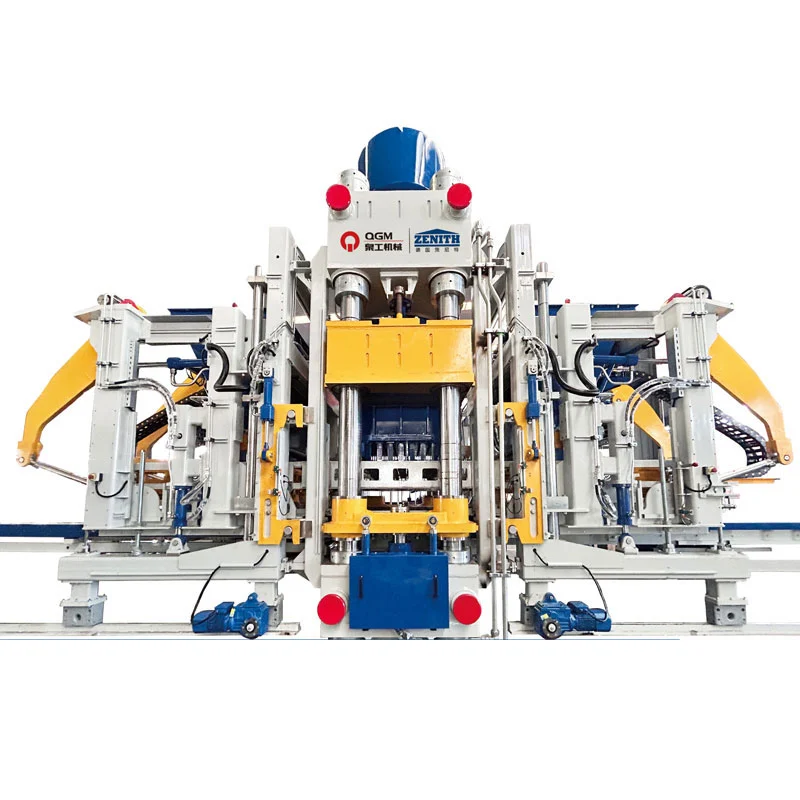

Concrete Brick Making equipment
In modern construction, the demand for high-quality concrete bricks continues to rise, driven by infrastructure growth and sustainable building practices. To meet these needs, we deliver integrated solutions anchored by our Concrete Block Machinery, which is engineered for exceptional durability and output consistency. This machinery works in perfect harmony with a fully automated Concrete Block production line that covers every stage from raw material batching and mixing to cubing and packing. At the heart of the operation sits our robust Concrete Block Machine equipment, featuring high-frequency vibration and hydraulic compression to produce strong, dimensionally precise blocks. Supporting these core units is a range of ancillary Concrete Block equipment, including silos, conveyors, pallet handling systems, and curing chambers, completing a truly turnkey manufacturing ecosystem.
The Concrete Brick Making Equipment range is designed for small-to-medium yards as well as large-scale industrial plants, blending robust mechanical design with advanced programmable logic controls. Each machine prioritizes low maintenance, fast mold changeovers, and energy-efficient operation, helping producers reduce cost per brick while scaling production. The vibration system uses servo-driven motors that optimize frequency and amplitude for different mix designs, ensuring dense, high-strength blocks with a smooth finish. The hydraulic circuit incorporates load-sensing technology that delivers only the pressure needed for each cycle, cutting energy consumption by up to 18% compared to conventional systems. A user-friendly HMI touchscreen provides real-time diagnostics, production counts, and recipe management, simplifying operator training and improving shift-to-shift consistency. The heavy-duty steel frame is stress-relieved and machined for long-term dimensional stability, even under 24/7 operating conditions. With multiple pallet sizes available and the ability to handle aggregates up to 10mm, this equipment produces solid bricks, hollow blocks, paving stones, and curbstones on the same platform. Modular design means you can start with a basic manual setup and later add automatic stacking, cubing, and wrapping modules without replacing the core press. That flexibility protects your investment and allows you to respond quickly to market shifts.
Core technical specifications are laid out below to provide a clear picture of the performance envelope. These parameters vary slightly by model, but the table represents a typical high-output machine configuration.
- Molding method: hydraulic press combined with high-frequency vibration
- Vibration frequency: adjustable from 2,800 to 3,800 rpm
- Hydraulic system: load-sensing axial piston pump, max working pressure 21 MPa
- Control system: Siemens PLC with 10-inch color touchscreen, remote access enabled
- Mold change time: under 8 minutes with quick-clamping system
- Pallet size: supports steel pallets up to 1,100mm × 650mm
- Aggregate size: designed for crushed stone and sand with max particle 10mm
- Working noise level: below 82 dB(A) at operator station
- Power supply: 380V, 50Hz, three-phase (custom voltages available)
| Parameter | Model 2000 Standard | Model 4000 High-Output |
|---|
| Production capacity (per hour) | 1,800–2,400 bricks | 3,600–4,200 bricks |
| Block height range | 50–200 mm | 50–250 mm |
| Installed power | 26 kW | 42 kW |
| Molding cycle time | 12–15 seconds | 9–11 seconds |
| Machine weight (approx.) | 6.5 tons | 10.2 tons |
| Dimensions (L×W×H) | 3,200×1,800×2,500 mm | 4,000×2,200×2,800 mm |
| Compressive strength output | ≥ 15 MPa (after 28d) | ≥ 20 MPa (after 28d) |
| Pallet magazine capacity | 12 pallets | 20 pallets |
Auxiliary components such as ribbon mixers, concrete skip hoists, and cement silos are sized to match the chosen production line speed, eliminating bottlenecks. The equipment copes well with fly ash, quarry dust, and slag, which reduces cement content and overall raw material cost. Standard safety features include perimeter light curtains, emergency stops on all sides, and overload protection on hydraulic and electrical circuits. Operators also benefit from a fault diagnostic system that logs errors and suggests corrective actions, minimizing downtime. The frame and mold surfaces receive a three-layer industrial coating and a final anti-corrosion treatment, extending service life even in humid or coastal environments. Spare parts packages covering one to two years of scheduled maintenance are available, and our support team can commission the equipment on site within two weeks of delivery. This comprehensive build quality and after-sales support ensures that Concrete Brick Making Equipment delivers repeatable performance over decades of service.
