Concrete Block Machinery
In modern construction and infrastructure development, efficiency and durability depend on the quality of building materials. Our advanced Concrete Block production line delivers precision-engineered solutions for high-volume manufacturing, ensuring every block meets rigorous structural standards. From raw material batching to curing, the integrated systems minimize manual intervention while maximizing output consistency. Contractors and plant managers seeking reliable Concrete Block Machine equipment will find our units built with robust frames, vibration systems, and hydraulic controls that reduce maintenance downtime. For operations requiring versatile and scalable Concrete Block equipment, our catalog offers modular configurations adaptable to hollow blocks, solid bricks, and paving stones. Additionally, the precision of our automated Concrete Brick Making Machine ensures uniform shape, dimension, and compressive strength, ideal for load-bearing walls and commercial projects.

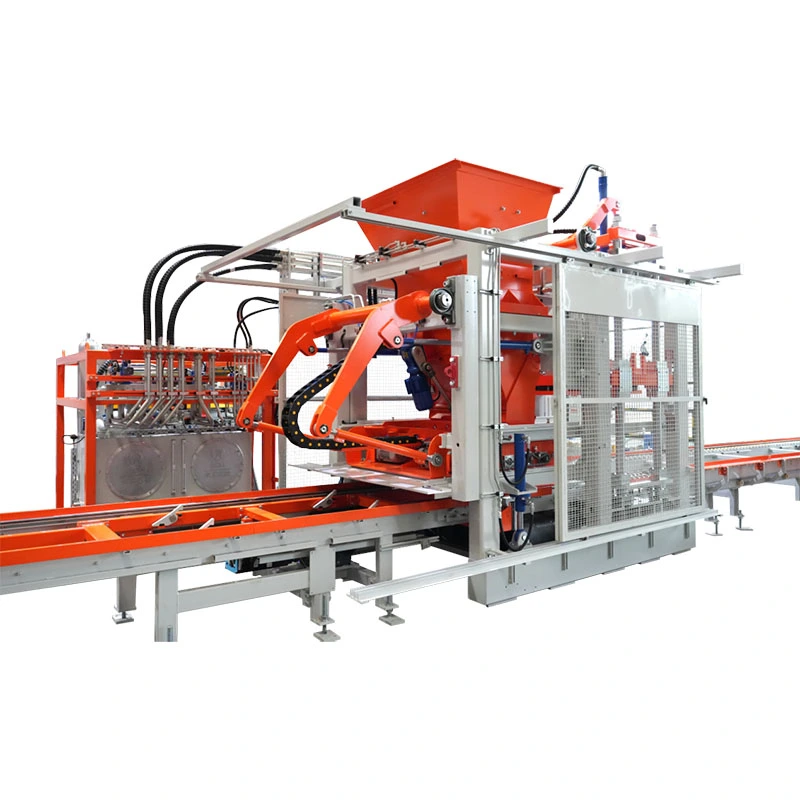

Concrete Block Machinery forms the backbone of any high-output precast facility, combining innovative technology with decades of engineering refinement. These machines undergo rigorous factory testing to deliver consistent vibration frequency, pressing force, and cycle time, resulting in blocks with accurate dimensions and dense compaction. A typical setup includes a concrete mixer, belt conveyor, block forming machine, and an automated stacking and cubing system, all controlled through user-friendly PLC interfaces. The equipment supports a wide range of mold designs, enabling production of interlocking blocks, curb stones, and insulation blocks without extensive retooling. With features like frequency-controlled vibration and hydraulic pressure regulation, Concrete Block Machinery reduces cement waste and energy consumption, aligning with lean manufacturing principles and green building requirements. From small-scale enterprises to multinational plants, the machinery adapts to varying daily outputs, making it a practical investment for businesses aiming to expand their product portfolio while maintaining strict quality compliance.
- Production capacity: 800–28,800 blocks per 8-hour shift, depending on block size and model
- Block types: Hollow, solid, paver, interlocking, curbstone, and insulation blocks
- Vibration system: High-frequency servo or hydraulic vibration with adjustable force up to 120 kN
- Hydraulic pressure: Up to 25 MPa for superior compaction and surface finish
- Cycle time: As fast as 12–20 seconds per pallet, contingent on mold configuration
- Control system: Siemens PLC with touch-screen HMI for real-time parameter monitoring
- Power supply: 220V/380V/440V, 50/60 Hz three-phase, customizable
- Pallet size compatibility: 850×550 mm, 1100×700 mm, 1400×900 mm, and other custom sizes
- Mold material: Hardened steel with wear-resistant coating, heat-treated for prolonged life
- Noise level: < 75 dB(A) at full operation, meeting workplace safety standards
| Model | Block per Hour (400×200×200 mm) | Installed Power (kW) | Pallet Size (mm) | Weight (tons) |
|---|
| QT4-15 | 1,440–1,920 | 22.5 | 850×550 | 4.5 |
| QT6-15 | 2,160–2,880 | 32.5 | 1100×700 | 7.2 |
| QT8-15 | 2,880–3,840 | 42.0 | 1100×700 | 9.8 |
| QT10-15 | 3,600–4,800 | 55.5 | 1400×900 | 12.5 |
| QT15-15 | 5,400–7,200 | 78.0 | 1400×1100 | 16.0 |
