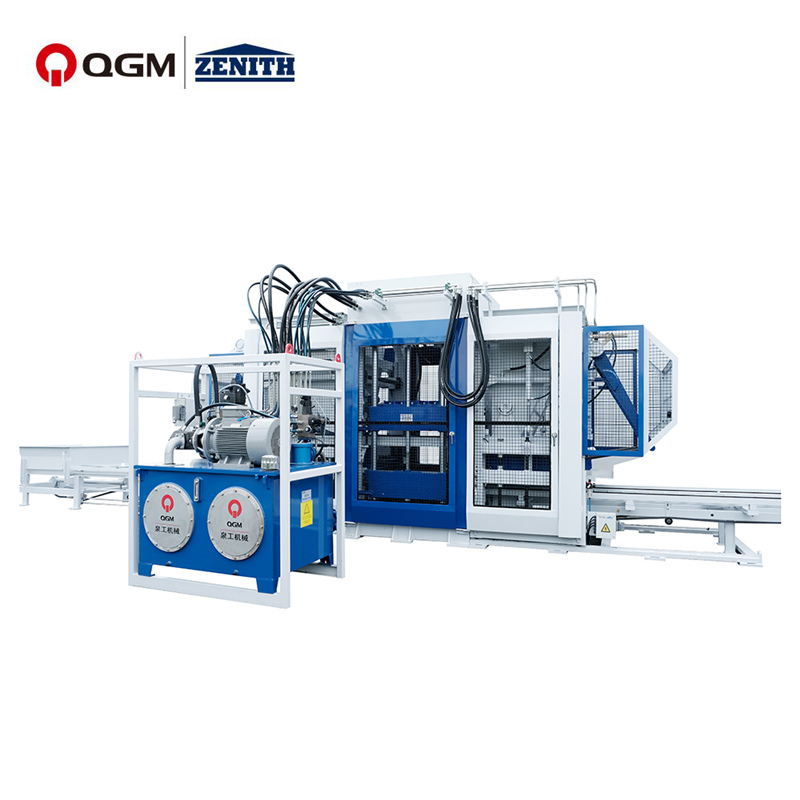

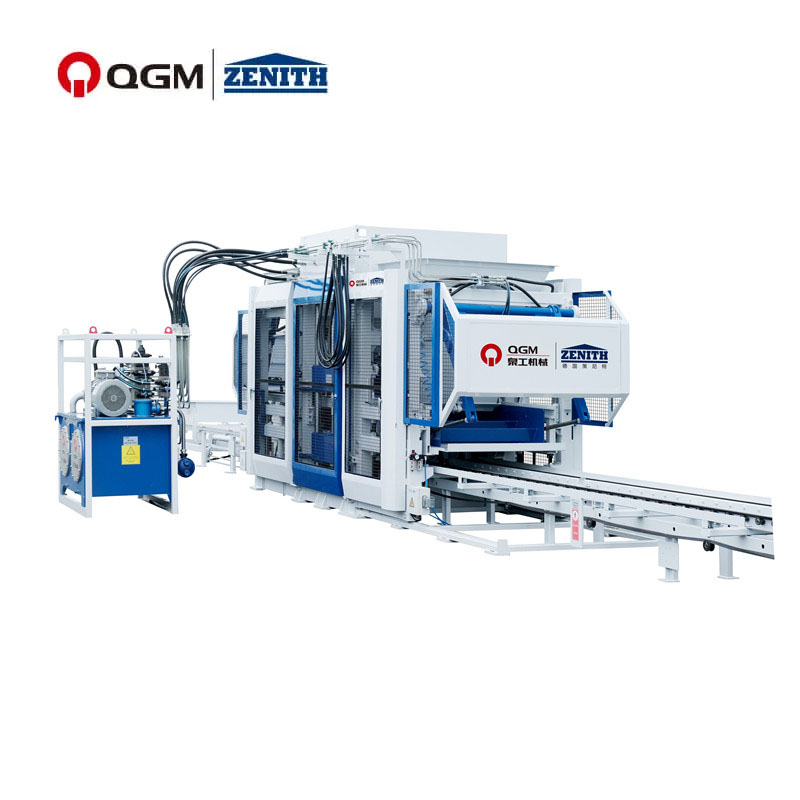

Paver Block Making Machine

Paver Block Making Machine is a mechanical equipment specially used for producing new environmentally friendly materials such as pavement bricks, slope protection bricks, permeable bricks, etc. It mainly uses fly ash, stone powder, sand, gravel, cement, etc. as the main raw materials, and uses hydraulic power and high pressure to press out new building materials such as blocks or bricks. The structural principle and characteristics include the use of hydraulic forming mode to ensure the density and strength of the product. Paver Block Making Machine usually adopts a 4-column design to ensure the balance and stability of the mold, thereby reducing the burrs of the blocks and improving the appearance quality of the product. Paver Block Making Machine is suitable for the production of pavement bricks, slope protection bricks, etc. of various specifications. It is widely used in community construction, household bricks, municipal planning and other fields, providing important building materials for modern urban construction.

Product Video

Main Technology Features

1)The Zenith block making machine adopts frequency conversion control to reduce the starting current of the motor. This achieves the synchronous operating of vibration assembly and solves the inertia problem motor when stopping, saving power by 20%-30%.

2)With the adoption of Germany Siemens PLC and Siemens touch screen control, the operation is easy, the overall fault is low and operating data can be saved permanently.

3)The hydraulic system is controlled by proportional valve to automatically adjust the flow during production, improving the operating stability and prolonging the service life of the cylinder.

4)The feeding car adopts 360˚ rotary feeding method with fast speed and uniform distribution, applicable to various raw materials and moulds.

5)After a cabonitriding treatment, the mould is resistant to wear and has a service life of over 50% longer than general moulds.

6)The machine is equipped with real-time fault diagnosis and alarming system.

7)The vibration table is connected with the workbench and the hole spacing of the eccentric shaft is enlarged, reducing the loss of energy transfer, enlarging the effictive vibration area and improving the vibration efficiency.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Production Capacity (Per 8hs)
Hollow Block	390*190*190		12	14,400-16,800 pcs
Rectangular Paver	200*100*60-80		36	1,000-1,200m2
Interlocks	225*112.5*60-80		32	35,200-38,400 pcs
Curstone	500*150*300		4	4,400-5,600 pcs
