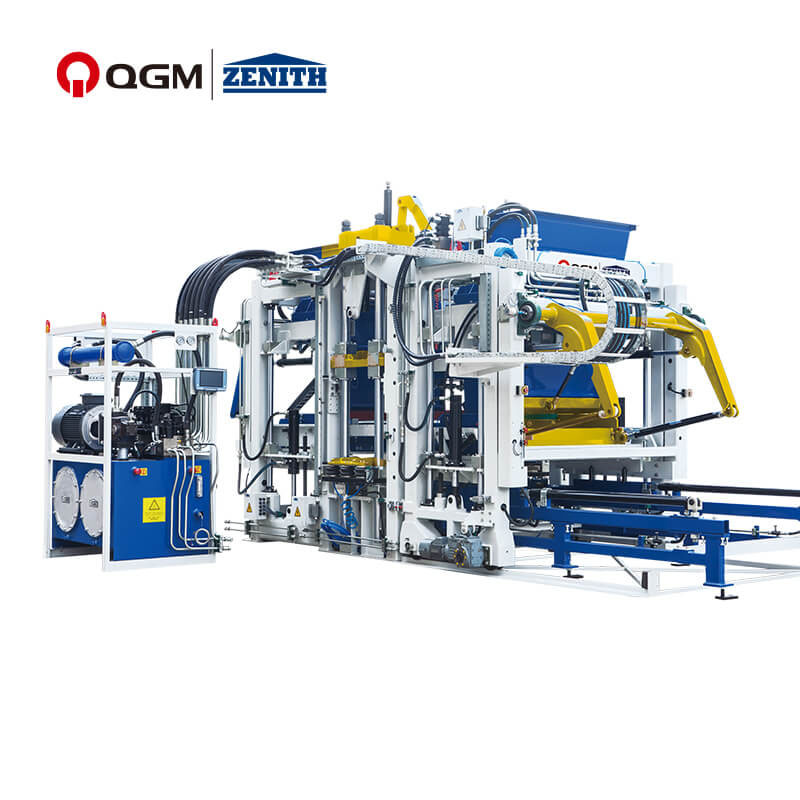

QGM/Zenith is a proficient manufacturer and supplier of Interlocking Block Brick Making Machine in China. As a machine designed in Germany and made in China, ZN900CG meets with the European Standard well. ZN900CG can be seen as the pro version on ZN900C.Equipped with Quick Mould Change, Italian GSEE Encoder, Italian Hydraulic System, European Standard machine for better performance.There are 2×12.1KW servo vibration motors in the bottom, 2×0.55KW vibrators on top vibration, to achieve 100 KN vibration force. The product height can range from 40mm to 300mm.
Interlocking Block Brick Making Machine is a professional brick making equipment, mainly used for the production of interlocking slope protection bricks, retaining blocks, grass bricks, etc. These products are widely used in water conservancy and hydraulic engineering projects. Bricks with interlocking functions can effectively protect the embankment slope, resist erosion, impact, and frost, and are durable. Interlocking Block Brick Making Machine uses stone powder, river sand, gravel, fly ash, cement, etc. as raw materials. The production process of Interlocking Block Brick Making Machine is fire-free. The products are directly pressed into shape by vibration or high-pressure extrusion. The process is environmentally friendly and no pollutants are discharged. The production process is semi-dry production, and no dust will be generated throughout the production process. By replacing the mold, high-value-added ecological brick products such as ecological permeable bricks, curbstones, artificial stones, hydraulic bricks, and slope protection bricks can be produced.
Product Video
Main Technology Features

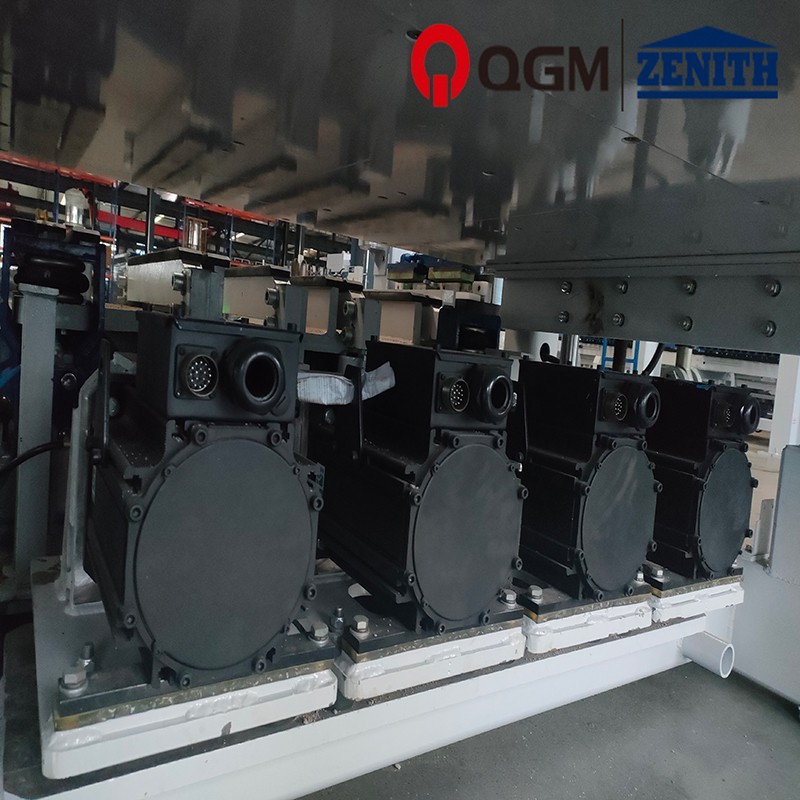

Latest Servo Vibration Technology
The block machine is equipped with the newly developed servo vibration system, which can ensure the vibration motors are in a synchronized state, which can guaranteethe vertical output of compaction force.Also avoid the shear stress damage of the horizontal compaction force to the machine and prolong the machine lifespan.The motor speed can reach more than 4000 rpm, which canprovide bigger compaction force & the block quality wouldbe greatly improved.

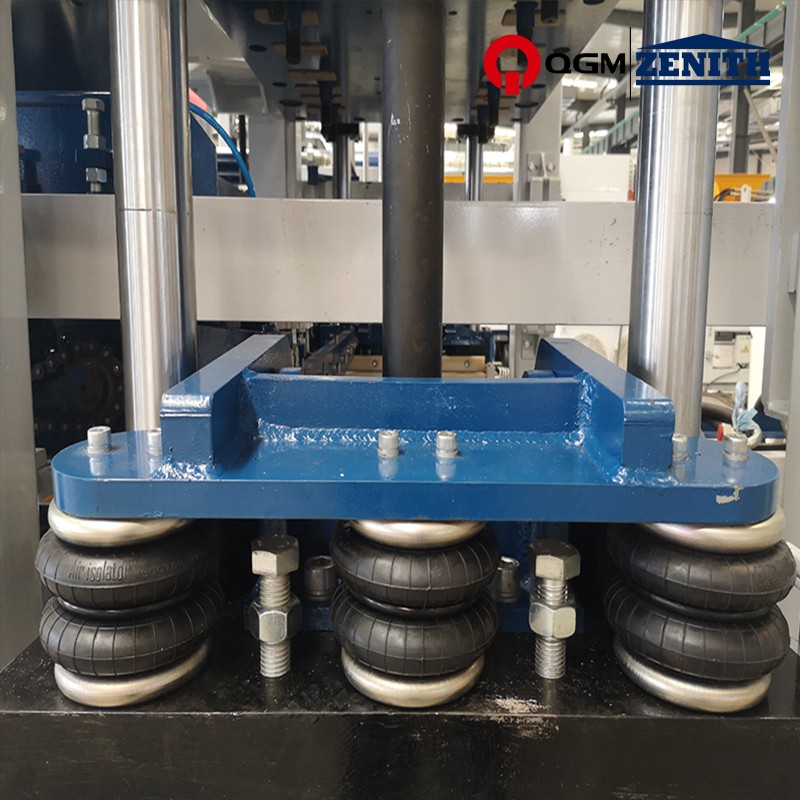

Automatic Mould Clamping System with AirBags
There are air bags on the tamper head & two side ofmachine.After the mold is pushed into place, the airbag of the tamper head is inflated and tightened automatically.Finally, the airbag of the mold frame is inflated to clampthe mold frame automatically. In this way, it can help tosave a lot of time for changing different moulds, reduce the vibration noises & also increase production efficiency.

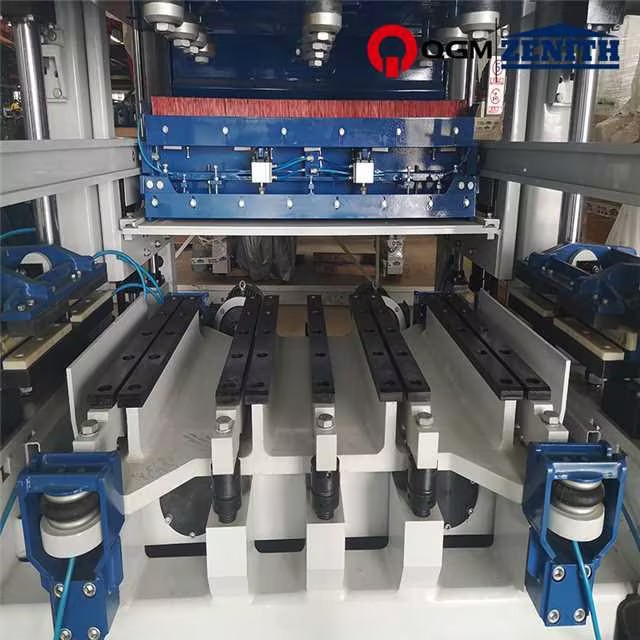

Double Vibration System
Vibration table adopts high-duty Sweden HARDOX steel,consisting of dynamic table & static table, which can greatly improve the vibration efficiency. While there are another two vibrators on top, to increase compaction &guarantee the high quality of concrete blocks.
Frequency conversional technology & control
QGM control system adopts SIEMENS PLC,Touchscreen, contactors & buttons etc., which perfectly combine the automatic technology and advanced systemfrom Germany.SIEMENS PLC has automatic trouble-shooting function for easy maintenance & also automatic-locking to avoid mechanical accidents caused by operational mistakes. While the SIEMENS touch screencan display real-time production status & achieve easyoperation by visualization representation. In case any partis broken in the future, the replacement part can be sourced locally, which can save a lot of time & cost.
lntelligent Cloud System
QGM intelligent equipment cloud system realizes onlinemonitoring, remote upgrade, remote fault prediction andfault self-diagnosis, equipment health status evaluation;generates equipment operation and application statusreports and other functions; with the advantages ofremote control & operation, quick troubleshooting &maintenance for the clients. Everything is interconnected,and the production and operation of equipment can beseen through the network in every corner of the world.
Technical Data
Maximum Forming Area
1,300×650mm
Block Height
40-300mm
Cycle Time
14~24s (depending on block type)
Servo Vibration Force
100KN
Pallet Size
1,350×700×(14-35)mm
Servo Vibration Motors in Bottom
2×12KW/Set
Top Vibration Motors on Tamper Head
2×0.55KW
Control System
SIEMENS
Total Power
52.6KW
Total Weight
17T (including facemix device & mould)
Machine Dimension
6,300×2,800×3,500mm
Production Capacity
Block Type
Dimension (mm)
Pictures
Qty/Cycle
Production Capacity
(Per 8hs)
Hollow Block
390*190*190
9
10,800-13,500 pcs
Rectangular Paver
200*100*60-80
36
43,200-50,400 pcs
Interlocks
225*112.5*60-80
25
30,000-37,500 pcs
Curstone
500*150*300
4
4,800-5,600 pcs
